Zetek Tester & Multimeters

KM035 All Purpose Multimeter

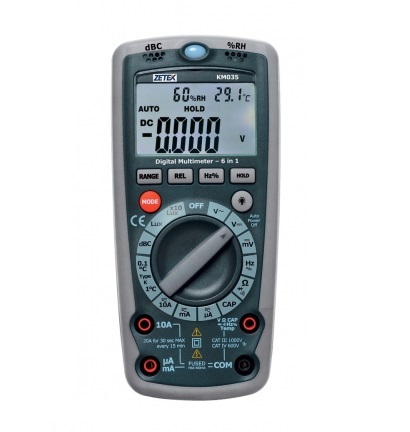

Zetek KM035 All Purpose Multimeter
Professional All Purpose Multimeter able to perform many measurements that are not possible with traditional tools.




Professional All Purpose Multimeter able to perform many measurements that are not possible with traditional tools.

Measurements:

  • Voltage (AC/DC) up to 250V
  • Current (AC/DC) up to 10A, suitable to check devices of a certain importance (up to 2300W at 230V). Protected by internal fuse.
  • Resistance
  • Diode test
  • Continuity test with audible signal
  • Temperature (-20°C/+1300°C) with thermocouple
  • Environment temperature and humidity with internal sensors
  • Capacity (capacitors)
  • Frequency and Duty Cycle
  • Brightness (lux)
  • Sound intensity (dB, decibels)
  • Autoranging, automatic selection of the measuring scale
  • Data hold, value block on the display
  • Auto power off after

TECHNICAL DATA

 DC voltage  400mV, 4V, 40V, 100V, 250V
 AC voltage  400mV, 4V, 40V, 100V, 250V
 DC current  400µA, 4mA, 40mA, 400mA,10A
 AC current 400µA, 4mA, 40mA, 400mA,10A
 Frequency 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz
 Resistance  400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
 Continuity  R<50Ω
 Lux 4000 Lux, 40000 Lux
 Capacitance 50nF, 500nF, 5µF, 50µF, 100µF
 dB 35 / 100 dB
 RH Umidity 33%RH / 99%RH
 Diode test Yes
 Temperature  -20° / +1300 °C
 Data hold Yes
 NCV Yes
 Auto power off   15 min
 Power supply 1x9V battery not included



SPARE PARTS

KM030.010 – Probes
KM030.015 – Termocouple
