ZECA | Retractable Cable Reels

series 6000 PRL

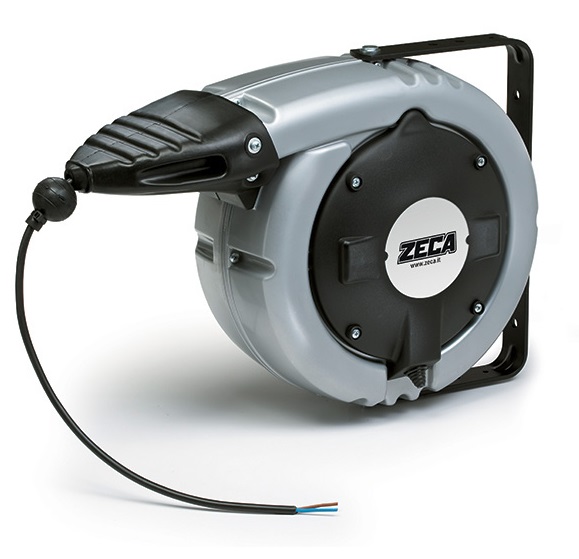

Zeca Series 6000PRL Die-cast aluminium case Industrial Cable Reels
Heavy-duty Die-cast aluminium casing cable reel with cable roller guide




TECHNICAL DATA

  • Die-cast aluminium case
  • Cable roller guide
  • Ratchet stop device every 50 cm.All cable reels are supplied with predisposition for cable-stop device off. It can be easily inserted.
  • Double earth contact.
  • Collector insulating power 2,5 Kv.
  • Brass-rings collector and special brushes with minimum impedance drop.
  • Slipring with brass rings and brushes.
  • Protection degree IP43.
  • Working temperature -5°C/+50°C.
  • Delivered without cable at feeding side.
  • Available both with PVC cable and rubber cable.

OPTIONAL

ART. 949/PR
Optional device to make the fastening bracket of PRC series cable reels fixed instead of pivoting.



Ordering Manufacturing P/N:

Art. Conductor number Conductor section Cable length (m) KW cable wound KW cable unwound Max Current (A) Cable type Ø cable (mm) Collettore maggiorato
6340/PRL 1 X 2.5 30       H05V-F 5.5
6386/PRL 1 X 6 26       H05V-F 5.5 *
6384/PRL 1 X 16 17       H05V-F 8 *
6341/PRL 2 X 1 20 1 @230V 1.7 @230V 1 H05VV-F 6
6383/PRL 2 X 1 26 1 @230V 1.7 @230V 1 H05VV-F 6
6382/PRL 2 X 1.5 26 1.1 @230V 1.8 @230V 1.1 H05VV-F 8
6380/PRL 2 X 2.5 23 1.8 @230V 2.5 @230V 1.8 H05VV-F 9
6378/PRL 3 G 1 26 1 @230V 1.7 @230V 1 H05VV-F 65
6377/PRL 3 G 1.5 26 1.1 @230V 1.8 @230V 1.1 H05VV-F 7
6377/PRL RNF 3 G 1.5 22 1.1 @230V 1.8 @230V 1.1 H07RN-F 95
6375/PRL 3 G 2.5 17 2 @230V 3 @230V 2 H05VV-F 10
6376/PRL 3 G 2.5 17 2 @230V 3 @230V 2 H05VV-F 10 *
6375/PRL RNF 3 G 2.5 14 2 @230V 3 @230V 2 H07RN-F 115
6376/PRL RNF 3 G 2.5 14 2 @230V 3 @230V 2 H07RN-F 115 *
6373/PRL 4 G 1 26 0.8 @400V 1.4 @400V 0.8 H05VV-F 7
6372/PRL 4 G 1.5 23 1.1 @400V 1.8 @400V 1.1 H05VV-F 85
6372/PRL RNF 4 G 1.5 18 1.1 @400V 1.8 @400V 1.1 H07RN-F 105
6370/PRL 4 G 2.5 17 2 @400V 3 @400V 2 H05VV-F 11
6525/PRL 4 G 2.5 17 2 @400V 3 @400V 2 H05VV-F 11 *
6525/PRL RNF 4 G 2.5 12 2 @400V 3 @400V 2 H07RN-F 125 *
6396/PRL 4 G 4 10 3 @400V 4 @400V   H05VV-F 14 *
6136/PRL 5 G 1 18 0.8 @400V 1.4 @400V 0.8 H05VV-F 75
6140/PRL 5 G 1.5 17 1.5 @400V 2.2 @400V 1.5 H05VV-F 95
6154/PRL 5 G 2.5 12 2 @400V 3 @400V 2 H05VV-F 12.5
6156/PRL 5 G 2.5 12 2 @400V 3 @400V 2 H05VV-F 12.5 *
6156/PRL RNF 5 G 2.5 10 2 @400V 3 @400V 2 H07RN-F 135 *
6138/PRL 7 X 1 18     3 H05VV-F 85
6142/PRL 7 X 1.5 11     4.5 H05VV-F 105
6139/PRL 8 X 1 13     3 H05VV-F 10
6143/PRL 8 X 1.5 10     4.5 H05VV-F 115
6196/PRL 8 X 2.5 8     7.5 H05VV-F 14
6144/PRL 10 X 1 10     3 H05VV-F 13
6146/PRL 10 X 1.5 8     4.5 H05VV-F 155
6614/PRL 12 X 1 12     3 H05VV-F 13
6616/PRL 12 X 1.5 8     4.5 H05VV-F 135
6145/PRL 16 X 1 8     3 H05VV-F 14
