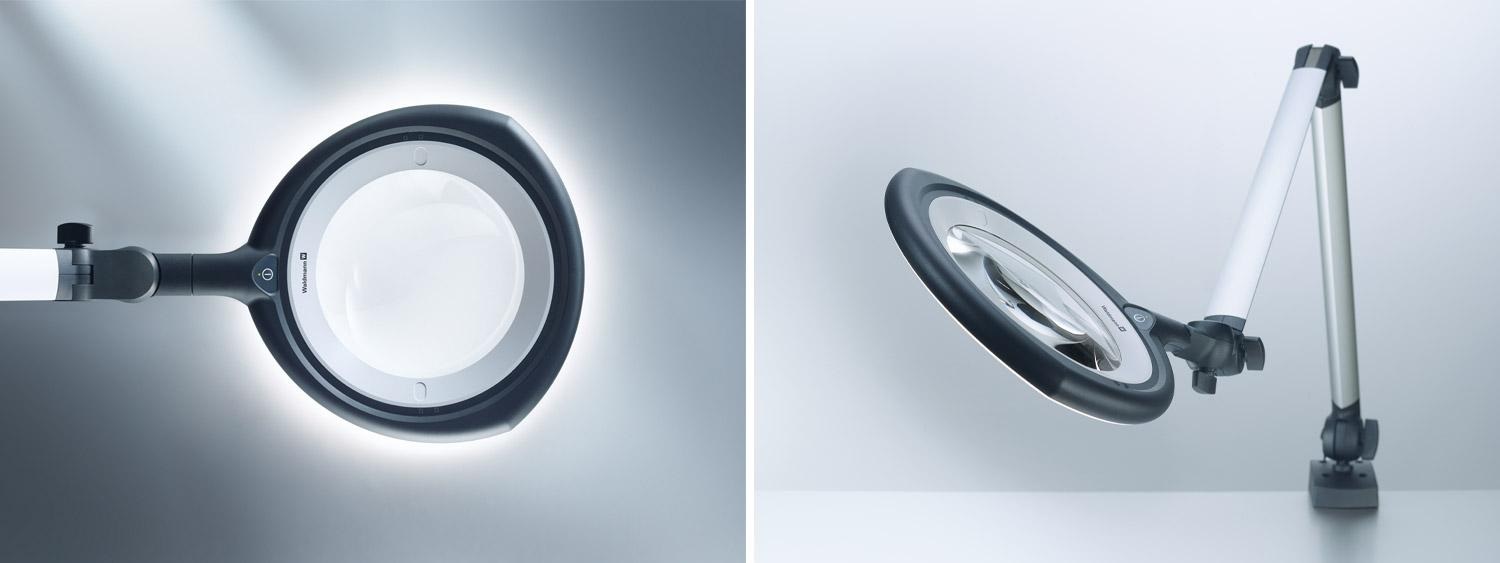

New features include an enhanced level of colour rendering and even more homogeneous light distribution. Another completely revolutionary aspect is the tool-free removal of the lens for cleaning, replacement or exchange. The optional new 6 dpt. plastic lens makes it possible to achieve a higher magnification factor whenever you so desire. Waldmann TEVISIO enables you to see your world through new and now even better eyes.
High light qualityExcellent colour rendering values and absolutely homogeneous light distribution. Optimum support in the evaluation and verification of colour and surface qualities. Perfectly opacified cover, no adverse reflections. |
LongevityPerfect ergonomics and optimum sustainability. Your stable arm, the sealed joints, the robust aluminium and the high-performance plastic used make TEVISIO a reliable partner for the longterm. |
Lens changesSimple to replace with 6 dpt. Plastic lens for a higher magnification factor. Even greater ability to identify detail with the same perfect quality of depiction and a perfectly illuminated field of view – the new TEVISIO is now even more versatile. |
NOW WITH EXCHANGE TECHNOLOGY.The TEVISIO magnifier luminaire delivers delight right across the range. |
 | Assembly workplace |  | Workshop workplace |  | Inspection workplace | |||
 | Laboratory workplace |  | Watchmaker workplace |
| Fitted with Consumption | Operating device Connected load | Dimensions Special feature | Luminous flux | Model Order No. | ||
|---|---|---|---|---|---|---|
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 384 mm, B = 400 mm 2D head joint plastic lens | 750 lm | TVD 750/940/DM 113712000-00800638 | ||
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 384 mm, B = 400 mm 2D head joint plastic lens additional lens 8 dioptres | 750 lm | TVD 750/940/DM 113712000-00800639 | ||
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 384 mm, B = 400 mm 3D head joint glass lens | 750 lm | TVD 750/940/DM 113713000-00800659 | ||
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 384 mm, B = 400 mm 3D head joint antireflective glass lens | 750 lm | TVD 750/940/DM 113713000-00800660 | ||
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 384 mm, B = 400 mm 3D head joint glass lens additional lens 8 dioptres | 750 lm | TVD 750/940/DM 113713000-00800661 | ||
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 484 mm, B = 500 mm 3D head joint glass lens | 750 lm | TVD 750/940/DM 113714000-00800676 | ||
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 484 mm, B = 500 mm 3D head joint antireflective glass lens | 750 lm | TVD 750/940/DM 113714000-00800677 | ||
| LED 13 W | electronic plug-in ballast 100-240 V; 50/60 Hz | A = 484 mm, B = 500 mm 3D head joint glass lens additional lens 8 dioptres | 750 lm | TVD 750/940/DM 113714000-00800678 |
 | Electronics workplace |
| Fitted with Consumption | Operating device Connected load | Dimensions Special feature | Luminous flux | Model Order No. | ||
|---|---|---|---|---|---|---|
| LED 16 W | electronic transformer 100-240 V; 50/60 Hz secondary 24 V; DC | A = 484 mm, B = 500 mm ESD version long arms light characteristic can be adjusted with a three-way switch | RLLQ 48/2 AR 113585000-00766273 | |||
| LED 16 W | electronic transformer 100-240 V; 50/60 Hz secondary 24 V; DC | A = 384 mm, B = 400 mm ESD version light characteristic can be adjusted with a three-way switch | RLLQ 48/2 AR 113986000-00766281 |
| Assembly workplace | | Workshop workplace | | Inspection workplace | ||||
| Laboratory workplace | | Watchmaker workplace |
|
