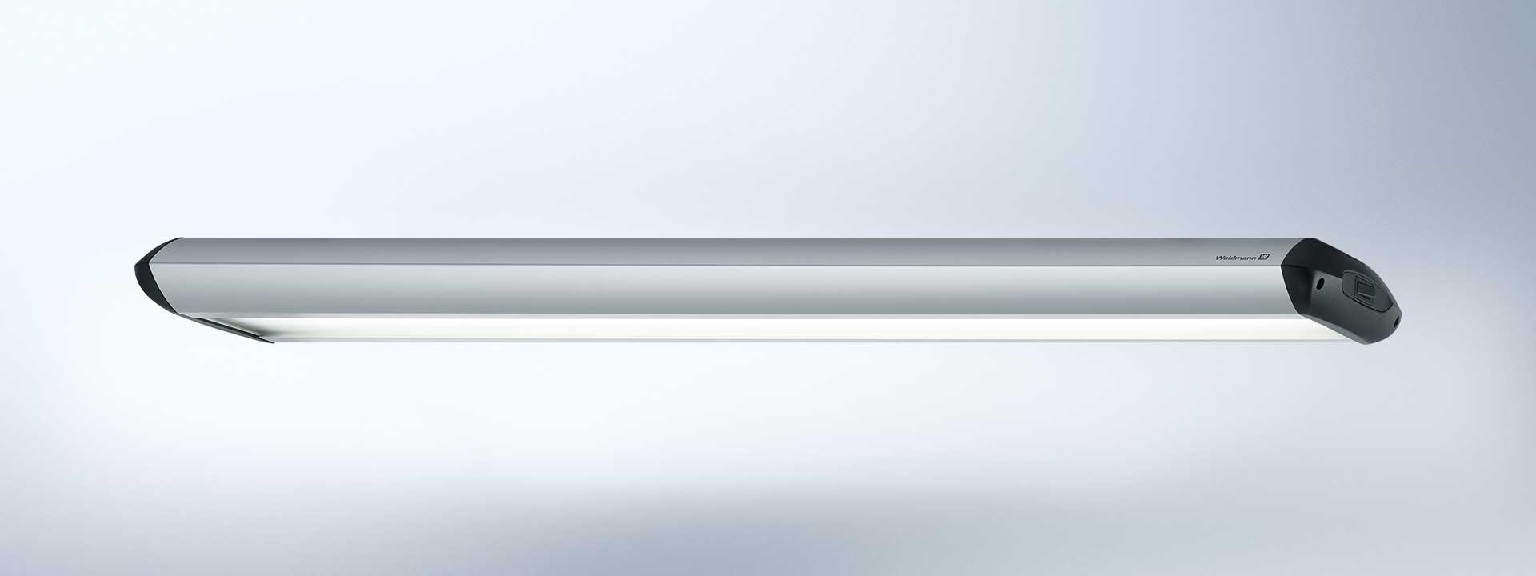

Waldmann TAMETO - Workplace System Light Fittings

Because every employee is different, TAMETO adapts to individual needs. Whether young or older with a greater need for light and increasing sensitivity to glare, the lighting conditions with TAMETO are pleasant for every employee. This ensures well-being and satisfaction.Warm white, neutral white, daylight white? If you have a choice, you‘re spoilt for choice. Or take all light colours in one luminaire! With TAMETO, they can be easily and continuously adjusted between 3000 and 6500 Kelvin. Just like the dimming value. And the colour rendering remains excellent with Ra > 90. For the best view and healthy eyes.Different colours and surfaces reflect the light colours quite differently. Our contrast vision differs depending on the spectrum. It is good if the luminaire always perfectly matches the conditions to the visual task and supports processes in the best possible way. Thus normative specifications and recommendations or internal test specifications are easily fulfilled.Thanks to the integrated Casambi module, all individual lighting requirements can be conveniently fulfilled via app: Dimming, light colours, defining and calling up scenes, grouping luminaires, creating schedules. If you want, you can also use a wireless push-button. No wiring is required for this.

Waldmann TAMETO - Workplace System Luminaires
A workplace is only ergonomic if the light is right. And the Engineers of Light from the Black Forest know exactly how to do this. The result: employees who never have to complain about headaches or eyestrain, and who can always see what they have to do. And because TAMETO is extremely flexible, versatile and visually very appealing, it becomes a highlight at every system workplace.




AS SHORT AND TECHNICAL AS POSSIBLE

  • LED-technology

  • Glare control via conical prismatic cover (CDP)

  • Colour rendering Ra > 90

  • Protection class IP20, protection class I

  • Housing of colourless anodised aluminium and black plastic, PMMA cover


 Workplace-System Luminaires TAMETO (on top, fixed)

Dimension: 656 mm


Fitted with
Consumption
Operating device
Connected load
Dimensions
Special feature
Luminous flux   Model
Order No.

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
656 mm
4000 K
1500 lm   SAHQ 44
112971000-00551337

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
656 mm
through-wired
4000 K
1500 lm   SAHQ 44 D
112971000-00555576

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
656 mm
continuously dimmable
4000 K
1500 lm   SAHQ 44 R
112972000-00551340

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
656 mm
continuously dimmable
5000 K
1500 lm   SAHQ 44 R
112972000-00688252

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
656 mm
continuously dimmable
6500 K
1500 lm   SAHQ 44 R
112972000-00688256

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
656 mm
externally operated
continuously dimmable
4000 K
1500 lm   SAHQ 44 R
113129000-00615052

LED
23 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
656 mm
Tunable White
radio-controlled; continuously dimmable
000018
1500 lm SAHQ 44 RC
114260000-00805753

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
656 mm
through-wired
continuously dimmable
4000 K
LightColor
1500 lm   SAHQ 44 RD
112972000-00555580

LED
23 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
656 mm
through-wired
radio-controlled; continuously dimmable
000018
1500 lm SAHQ 44 RDC
114260000-00805755


Dimension: 956 mm


Fitted with
Consumption
Operating device
Connected load
Dimensions
Special feature
Luminous flux   Model
Order No.

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
4000 K
LightColor
2300 lm   SAHQ 66
112975000-00551349

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
through-wired
switchable
4000 K
LightColor
2300 lm   SAHQ 66 D
112975000-00555628

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
continuously dimmable
4000 K
2300 lm   SAHQ 66 R
112976000-00551352

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
continuously dimmable
5000 K
LightColor
2300 lm   SAHQ 66 R
112976000-00687081

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
continuously dimmable
6500 K
LightColor
2300 lm   SAHQ 66 R
112976000-00687084

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
externally operated
continuously dimmable
4000 K
LightColor
2300 lm   SAHQ 66 R
113102000-00600908

LED
32 W
electronic ballast dimable digital
220-240 V; 50-60 Hz
956 mm
radio-controlled; continuously dimmable
000018
2300 lm SAHQ 66 RC
114261000-00805757

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
through-wired
continuously dimmable
4000 K
LightColor
2300 lm   SAHQ 66 RD
112976000-00555631

LED
32 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
956 mm
through-wired
illuminenz
adjustable white
2300 lm SAHQ 66 RDC
114261000-00805759


Dimension: 1256 mm


Fitted with
Consumption
Operating device
Connected load
Dimensions
Special feature
Luminous flux   Model
Order No.

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
4000 K
LightColor
3000 lm   SAHQ 88
112979000-00551361

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
through-wired
4000 K
LightColor
3000 lm   SAHQ 88 D
112979000-00555694

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
continuously dimmable
4000 K
LightColor
3000 lm   SAHQ 88 R
112980000-00551364

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
continuously dimmable
5000 K
LightColor
3000 lm   SAHQ 88 R
112980000-00687095

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
continuously dimmable
6500 K
LightColor
3000 lm   SAHQ 88 R
112980000-00687100

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
externally operated
continuously dimmable
4000 K
LightColor
3000 lm   SAHQ 88 R
113141000-00615059

LED
39 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
1256 mm
radio-controlled; continuously dimmable
000018
3000 lm SAHQ 88 RC
114262000-00805761

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
through-wired
continuously dimmable
4000 K
LightColor
3000 lm   SAHQ 88 RD
112980000-00555697

LED
39 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
1256 mm
through-wired
radio-controlled; continuously dimmable
000018
3000 lm SAHQ 88 RDC
114262000-00805763






Workplace-System Luminaires TAMETO (on top, integrated)

Fitted with
Consumption
Operating device
Connected load
Dimensions
Special feature
Luminous flux   Model
Order No.

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
599 mm
through-wired
1500 lm   SAHQ 44 D
113034000-00577611

LED
18 W
electronic ballast
220-240 V; 50/60 Hz
599 mm
through-wired
continuously dimmable
1500 lm   SAHQ 44 RD
113035000-00577614

LED
23 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
599 mm
through-wired
radio-controlled; continuously dimmable
000018
1500 lm SAHQ 44 RDC
114263000-00805771

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
899 mm
through-wired
2300 lm   SAHQ 66 D
113036000-00577617

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
899 mm
through-wired
continuously dimmable
2300 lm   SAHQ 66 RD
113037000-00577620

LED
32 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
899 mm
through-wired
illuminenz
adjustable white
2300 lm SAHQ 66 RDC
114264000-00805789

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1199 mm
through-wired
3000 lm   SAHQ 88 D
113038000-00577623

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1199 mm
through-wired
continuously dimmable
3000 lm   SAHQ 88 RD
113039000-00577626

LED
39 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
1199 mm
through-wired
illuminenz
adjustable white
3000 lm SAHQ 88 RDC
114265000-00805791




Workplace-System Luminaires TAMETO (on top, suspended)

Fitted with
Consumption
Operating device
Connected load
Dimensions
Special feature
Luminous flux   Model
Order No.

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
4000 K
2300 lm   SAHZQ 66
112983000-00551373

LED
26 W
electronic ballast
220-240 V; 50/60 Hz
956 mm
continuously dimmable
4000 K
2300 lm   SAHZQ 66 R
112984000-00551377

LED
32 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
956 mm
radio-controlled; continuously dimmable
000018
2300 lm SAHZQ 66 RC
114266000-00805794

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
4000 K
3000 lm   SAHZQ 88
112987000-00551386

LED
33 W
electronic ballast
220-240 V; 50/60 Hz
1256 mm
continuously dimmable
4000 K
3000 lm   SAHZQ 88 R
112988000-00551389

LED
39 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
1256 mm
radio-controlled; continuously dimmable
000018
3000 lm SAHZQ 88 RC
114267000-00805795

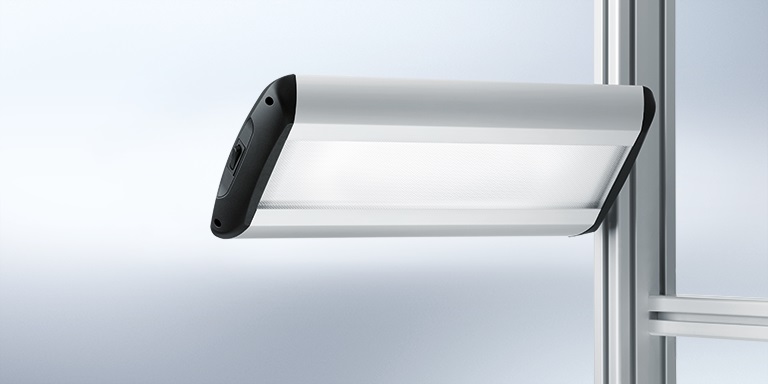

 Workplace-System Luminaires TAMETO (lateral)

Fitted with
Consumption
Operating device
Connected load
Dimensions
Special feature
Luminous flux   Model
Order No.

LED
18 W
electronic transformer
220-240 V; 50/60 Hz
456 mm 1450 lm   SAHKQ 60
112989000-00551392

LED
23 W
electronic ballast dimable digital
220-240 V; 50/60 Hz
456 mm
illuminenz
adjustable white
1450 lm SAHKQ 60 RC
114259000-00805715
Assembly workplace
Assembly workplace

Workshop workplace
Workshop workplace
Inspection workplace
Inspection workplace
Laboratory workplace
Laboratory workplace
