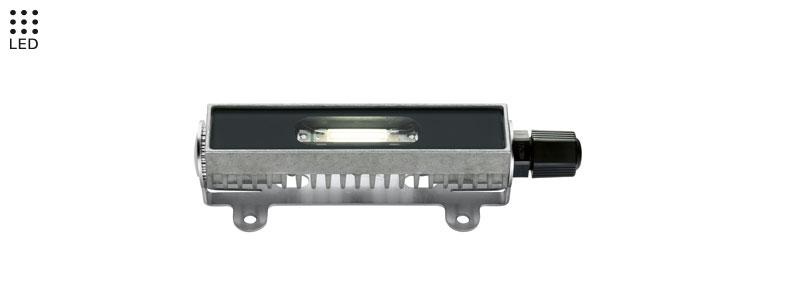

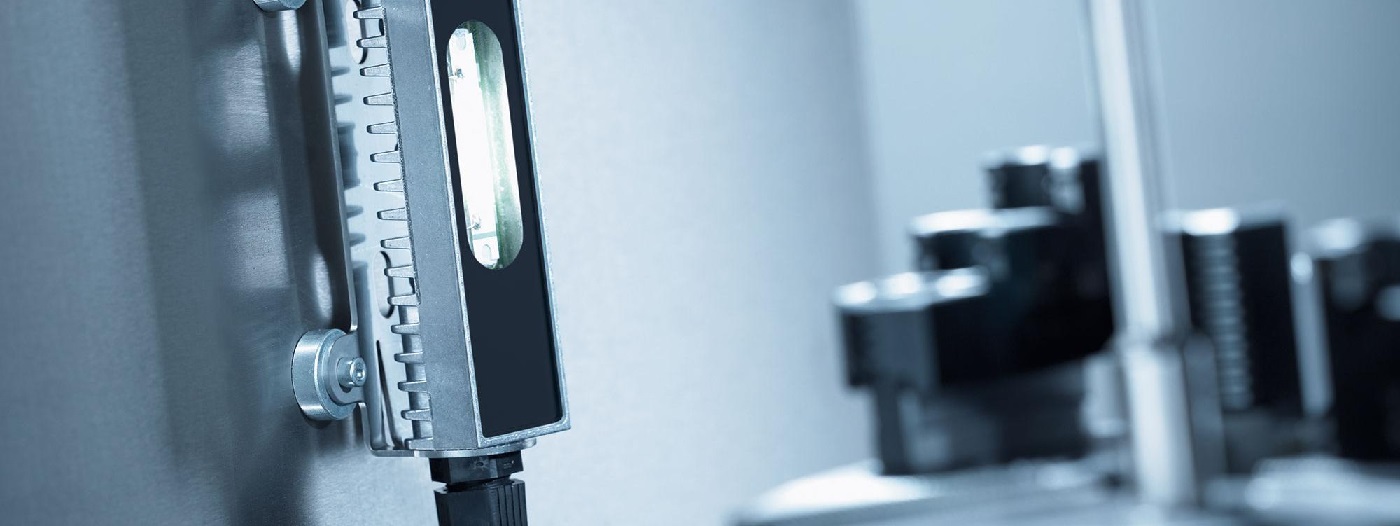

Where most lights often fail, ONE LED shows its true capabilities: restricted space and high temperatures – in some machines, you are faced with both of these problems.
LED technology
Colour temperature neutral white 5 000 K
Colour rendering Ra > 80
Direct beam
Aluminium housing
4 mm thick safety glass or acrylic screen
Screw-mounted to the + / - 90 ° adjustable support plate
Maximum allowed ambient temperature Tamax 50 ° C
LED service life (L70) > 50 000 h
Degree of protection IP54 (acrylic screen) or IP67 (safety glass), protection class III
Connection via quick connector or M12 plug connector, A-coded
M12 connection technology and operating devices as accessories for connection to the mains voltage
| Fitted with Consumption | Operating device Connected load | Dimensions Special feature | Luminous flux | Model Order No. | ||
|---|---|---|---|---|---|---|
| LED 6 W | without 20-28V; DC | 162,5 x 57 mm Quick Connector LightCover | 400 lm | MVAL 1 S 112887027-00076050 | ||
| LED 6 W | without 20-28V; DC | 162,5 x 57 mm M12 Connecting Plug LightCover | 400 lm | MVAL 1 S 112887040-00094116 | ||
| LED 6 W | without 20-28V; DC | 162,5 x 57 mm through-wired M12 Connecting Plug LightCover | 400 lm | MVAL 1 SD 112887000-00684959 | ||
| LED 6 W | without 20-28V; DC | 162,5 x 57 mm through-wired Quick Connector LightCover | 400 lm | MVAL 1 SD 112887007-00076013 |
 |
