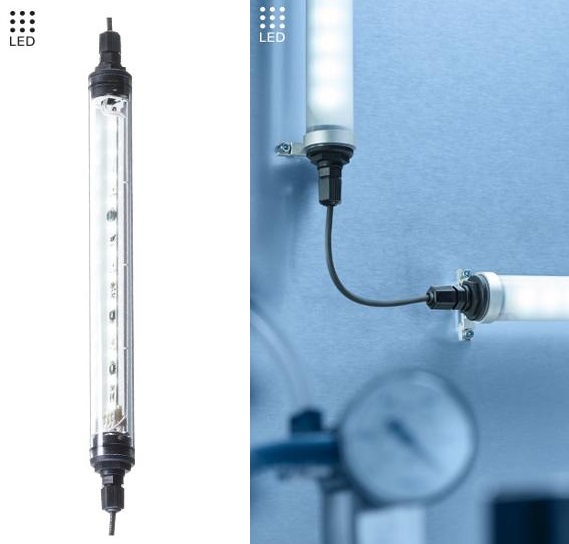

RL 40 LE as slim LED tube luminaire is highly suitable for many machines and production facilities or their periphery. Even in the most demanding application, this bright and robust luminaire presents itself with competence, such as when used on track laying machines.
LED technology
Colour temperature daylight white 5 700 K
Colour rendering Ra > 80
Direct beam or glare-free thanks to white opal luminaire body
Luminaire body made of PC
Mounted by means of various brackets from the accessories
Maximum allowed ambient temperature Tamax 40 ° C
LED service life (L70) > 50,000 h
Degree of protection IP67, protection class III
Connection via quick connector
Various brackets and operating device as accessories for connection to the mains voltage
 | Printing machines |  | Packaging machines |  | Production facilities | ||||
 | Woodworking machines |  | Textile machines |
| Fitted with Consumption | Operating device Connected load | Dimensions Special feature | Luminous flux | Model Order No. | ||
|---|---|---|---|---|---|---|
| LED 4,5 W | without 16-32 V; DC | A=368 mm polycarbonate (PC); clear | 590 lm | RL40LE- 12 113446000-00694180 | ||
| LED 4,5 W | without 16-32 V; DC | A=368 mm through-wired polycarbonate (PC); clear | 590 lm | RL40LE- 12 D 113017000-00694174 | ||
| LED 10 W | without 16-32 V; DC | A=652 mm polycarbonate (PC); clear | 1150 lm | RL40LE- 24 113447000-00694195 | ||
| LED 10 W | without 16-32 V; DC | A=652 mm through-wired polycarbonate (PC); clear | 1150 lm | RL40LE- 24 D 113019000-00694189 |
 |
| Track laying machines |
| Fitted with Consumption | Operating device Connected load | Dimensions Special feature | Luminous flux | Model Order No. | ||
|---|---|---|---|---|---|---|
| LED 4,5 W | without 16-32 V; DC | A=368 mm polycarbonate (PC); opal white | 480 lm | RL40LE- 12 113446000-00694177 | ||
| LED 4,5 W | without 16-32 V; DC | A=368 mm through-wired polycarbonate (PC); opal white | 480 lm | RL40LE- 12 D 113017000-00694171 | ||
| LED 10 W | without 16-32 V; DC | A=652 mm polycarbonate (PC); opal white | 950 lm | RL40LE- 24 113447000-00694192 | ||
| LED 10 W | without 16-32 V; DC | A=652 mm through-wired polycarbonate (PC); opal white | 950 lm | RL40LE- 24 D 113019000-00694183 |
