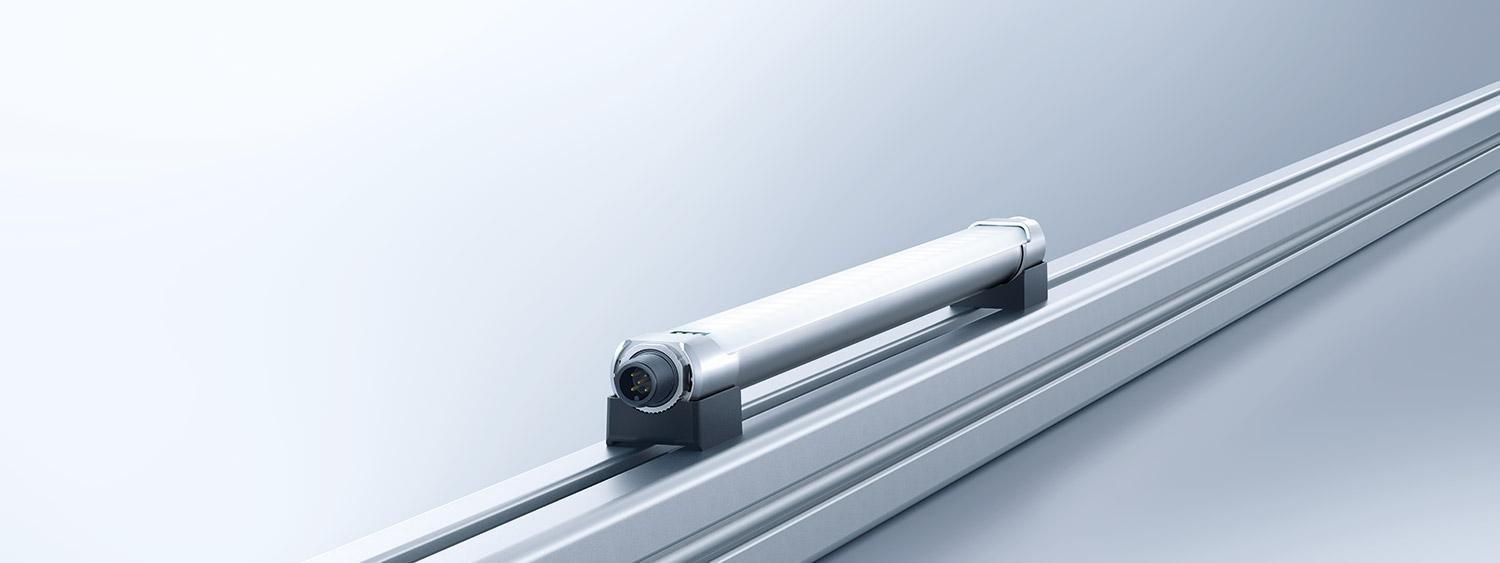

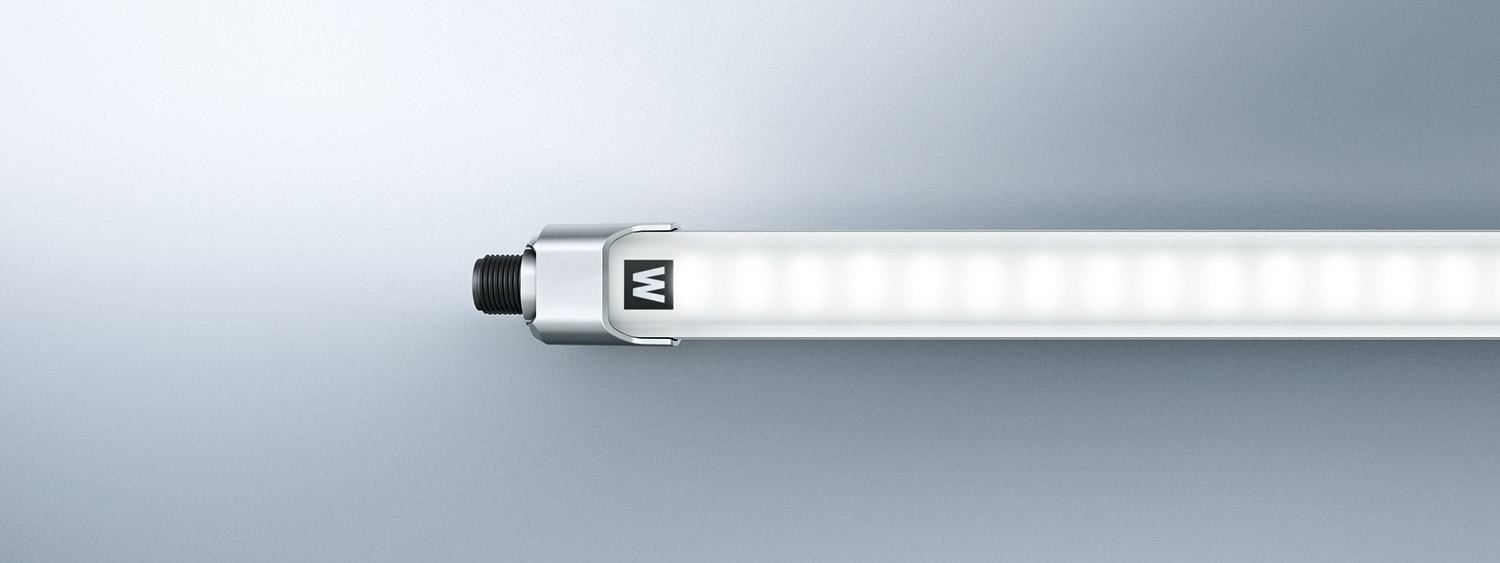

Whether made by a robot or by human hand, wherever things are produced or joined together, you need professional skills, concentration –and above all, good lighting conditions. LINURA.edge delivers powerful, homogeneous white light to monitor processes without specific spectral requirements, for example in assembly systems. Perfect illumination for perfect results.
| Lamps: | LED-Technologie |
| Colour temperature: | neutral white 5000 K |
| Colour rendering: | Ra > 80 |
| Beam angle: | 90° |
| Glare-free technology: | direct beam via a diffuse lens |
| Housing: | basic body made of aluminium, lens made of PMMA, side parts made of glass-fibre-reinforced PA |
| Ambient temperature Ta max: | 40° C or 50° C (variants with ADVANCED package) |
| LED service life: | > 60 000 h [L70 B50] (white variants) |
| Degree of protection / Protection class: | IP54 / III |
| Connection: | M12 plug connector (aligned), A-coded |
| Control: | Digital input for powerless switching |
| Power supply: | 22 – 26 VDC |
| Certificates: | CE, cETLus, D |
| Special features: | Through-wiring for electrical interlinking of several luminaires (variants) ADVANCED package (variants)
|
| Accessories: | manual pushbutton and distance sensor for looping into the supply line bracket, + / - 60° adjustable (included in scope of delivery) |
| Fitted with Consumption | Operating device Connected load | Dimensions Special feature | Luminous flux | Model Order No. | ||
|---|---|---|---|---|---|---|
| LED 10 W | without 22-26 V; DC | 615 mm ADVANCED package | 1260 lm | LEA 1200/850/MS 114086000-00803552 | ||
| LED 10 W | without 22-26 V; DC | 615 mm ADVANCED package through-wired | 1260 lm | LEA 1200/850/MST 114087000-00803553 | ||
| LED 12 W | without 22-26 V; DC | 615 mm | 1260 lm | LEA 1200/850/S 114039000-00801355 | ||
| LED 12 W | without 22-26 V; DC | 615 mm through-wired | 1260 lm | LEA 1200/850/ST 114038000-00801350 | ||
| LED 12,5 W | without 22-26 V; DC | 755 mm ADVANCED package | 1575 lm | LEA 1500/850/MS 114088000-00803555 | ||
| LED 12,5 W | without 22-26 V; DC | 755 mm ADVANCED package through-wired | 1575 lm | LEA 1500/850/MST 114089000-00803561 | ||
| LED 15 W | without 22-26 V; DC | 755 mm | 1575 lm | LEA 1500/850/S 114041000-00801360 | ||
| LED 15 W | without 22-26 V; DC | 755 mm through-wired | 1575 lm | LEA 1500/850/ST 114040000-00801356 | ||
| LED 15 W | without 22-26 V; DC | 895 mm ADVANCED package | 1890 lm | LEA 1800/850/MS 114090000-00803570 | ||
| LED 15 W | without 22-26 V; DC | 895 mm ADVANCED package through-wired | 1890 lm | LEA 1800/850/MST 114091000-00803583 | ||
| LED 18 W | without 22-26 V; DC | 895 mm | 1890 lm | LEA 1800/850/S 114043000-00801374 | ||
| LED 18 W | without 22-26 V; DC | 895 mm through-wired | 1890 lm | LEA 1800/850/ST 114042000-00801366 | ||
| LED 17,5 W | without 22-26 V; DC | 1035 mm ADVANCED package | 2205 lm | LEA 2100/850/MS 114092000-00803585 | ||
| LED 17,5 W | without 22-26 V; DC | 1035 mm ADVANCED package through-wired | 2205 lm | LEA 2100/850/MST 114093000-00803611 | ||
| LED 21 W | without 22-26 V; DC | 1035 mm | 2205 lm | LEA 2100/850/S 114045000-00801392 | ||
| LED 21 W | without 22-26 V; DC | 1035 mm through-wired | 2205 lm | LEA 2100/850/ST 114044000-00801380 | ||
| LED 20 W | without 22-26 V; DC | 1175 mm ADVANCED package | 2520 lm | LEA 2400/850/MS 114094000-00803612 | ||
| LED 20 W | without 22-26 V; DC | 1175 mm ADVANCED package through-wired | 2520 lm | LEA 2400/850/MST 114095000-00803615 | ||
| LED 24 W | without 22-26 V; DC | 1175 mm | 2520 lm | LEA 2400/850/S 114047000-00801394 | ||
| LED 24 W | without 22-26 V; DC | 1175 mm through-wired | 2520 lm | LEA 2400/850/ST 114046000-00801393 | ||
| LED 22,5 W | without 22-26 V; DC | 1315 mm ADVANCED package | 2835 lm | LEA 2700/850/MS 114096000-00803618 | ||
| LED 22,5 W | without 22-26 V; DC | 1315 mm ADVANCED package through-wired | 2835 lm | LEA 2700/850/MST 114097000-00803632 | ||
| LED 27 W | without 22-26 V; DC | 1315 mm | 2835 lm | LEA 2700/850/S 114049000-00801397 | ||
| LED 27 W | without 22-26 V; DC | 1315 mm through-wired | 2835 lm | LEA 2700/850/ST 114048000-00801396 | ||
| LED 2,5 W | without 22-26 V; DC | 195 mm ADVANCED package | 315 lm | LEA 300/850/MS 114080000-00803510 | ||
| LED 2,5 W | without 22-26 V; DC | 195 mm ADVANCED package through-wired | 315 lm | LEA 300/850/MST 114081000-00803511 | ||
| LED 3 W | without 22-26 V; DC | 195 mm | 315 lm | LEA 300/850/S 114033000-00801340 | ||
| LED 3 W | without 22-26 V; DC | 195 mm through-wired | 315 lm | LEA 300/850/ST 114032000-00801320 | ||
| LED 25 W | without 22-26 V; DC | 1455 mm ADVANCED package | 3150 lm | LEA 3000/850/MS 114098000-00803703 | ||
| LED 25 W | without 22-26 V; DC | 1455 mm ADVANCED package through-wired | 3150 lm | LEA 3000/850/MST 114099000-00803705 | ||
| LED 30 W | without 22-26 V; DC | 1455 mm | 3150 lm | LEA 3000/850/S 114051000-00801409 | ||
| LED 30 W | without 22-26 V; DC | 1455 mm through-wired | 3150 lm | LEA 3000/850/ST 114050000-00801408 | ||
| LED 5 W | without 22-26 V; DC | 335 mm ADVANCED package screen | 630 lm | LEA 600/850/MS 114082000-00803512 | ||
| LED 5 W | without 22-26 V; DC | 335 mm ADVANCED package through-wired | 630 lm | LEA 600/850/MST 114083000-00803513 | ||
| LED 6 W | without 22-26 V; DC | 335 mm | 630 lm | LEA 600/850/S 114035000-00801346 | ||
| LED 6 W | without 22-26 V; DC | 335 mm through-wired | 630 lm | LEA 600/850/ST 114034000-00801344 | ||
| LED 7,5 W | without 22-26 V; DC | 475 mm ADVANCED package | 945 lm | LEA 900/850/MS 114084000-00803550 | ||
| LED 7,5 W | without 22-26 V; DC | 475 mm ADVANCED package through-wired | 945 lm | LEA 900/850/MST 114085000-00803551 | ||
| LED 9 W | without 22-26 V; DC | 475 mm | 945 lm | LEA 900/850/S 114037000-00801349 | ||
| LED 9 W | without 22-26 V; DC | 475 mm through-wired | 945 lm | LEA 900/850/ST 114036000-00801348 |
 | Machine tools |  | Textile machines |  | Printing machines | |||
 | Woodworking machines |  | Production facilities |
