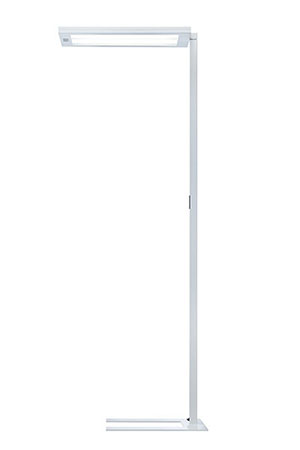

Free-Standing Luminaire LAVIGO

Lighting in the office should be adapted to individual needs and activities, which change every now and then throughout the day. Proper lighting is indispensable for fatigue-free work when switching between computer work, reading on paper and using mobile devices. Balanced lighting enhances vision and visual comfort. Intelligent sensors not only consider the influence of daylight but also the presence at the workplace, in order to avoid unnecessary energy consumption. Biodynamic light additionally supports the employees' well-being.

LAVIGO 12000/13000/14000/16500 lm
- Performance level for highest lighting demands
- Optimised ratio of direct to indirect light for standard-compliant, uniform illumination of large light calculation surfaces
- Direct light component with edge light and light-guide technology for homogenous light exit
- Easy-to-reach, multifunctional operating element
- Asymmetrical beam (variants)
- Human centric lighting VTL for office workplaces
- Retrofittable with TALK module for luminaires with sensor




Luminaire type

LED free-standing luminaire with multifunctional switch and removable luminaire head; Glare-free technology with concial prismatic screen incl. Light Forming Technology

Applications

lighting for work and rooms

Mounting methods

Mobile and flexible positioning in the room and at the workplace

Special feature

  • luminaire head detachable
  • Cradle to Cradle Certified TM
  • Direct light component with edge light and light-guide technology for homogenous light exit
  • Flicker-free
  • integrated light- and presence-detecting sensor
  • retrofittable with TALK module
  • separated; direct and indirect light individually adjustable
Order No. Desc.
121786000-00741869 DPS 12000/840/P/G2 - 80 W / 11650 lm
121786000-00741872 DPS 12000/840/P/G2 - 80 W / 11650 lm
121785000-00741857 DPS 12000/840/R/G2 - 80 W / 11650 lm
121785000-00741860 DPS 12000/840/R/G2 - 80 W / 11650 lm
121824000-00803165 DPS 12000/940/R/G2 - 102 W / 11350 lm
121824000-00803273 DPS 12000/940/R/G2 - 102 W / 11350 lm
121781000-00733483 DPS 13000/840/P/G2A - 112 W / 13050 lm
121781000-00733486 DPS 13000/840/P/G2A - 112 W / 13050 lm
121767000-00725975 DPS 13000/840/R/G2A - 112 W / 13050 lm
121767000-00717978 DPS 13000/840/R/G2A - 112 W / 13050 lm
121798000-00803269 DPS 14000/840/D/G2 - 102 W / 14050 lm
121798000-00803270 DPS 14000/840/D/G2 - 102 W / 14050 lm
121782000-00734513 DPS 14000/840/P/G2 - 102 W / 14050 lm
121782000-00734516 DPS 14000/840/P/G2 - 102 W / 14050 lm
121771000-00725995 DPS 14000/840/R/G2 - 102 W / 14050 lm
121771000-00726004 DPS 14000/840/R/G2 - 102 W / 14050 lm
121771000-00807385 DPS 14000/840/R/G2 - 102 W / 14050 lm
121814000-00800395 DPS 14000/VTL/R/G2 - 103 W / 14250 lm
121814000-00800396 DPS 14000/VTL/R/G2 - 103 W / 14250 lm
121833000-00804523 16500/840/R/G2 - 116 W / 16150 lm
121833000-00804524 DPS 16500/840/R/G2 - 116 W / 16150 lm
