Zetek Tester & Multimeters

KM021 Autoranging Multimeter

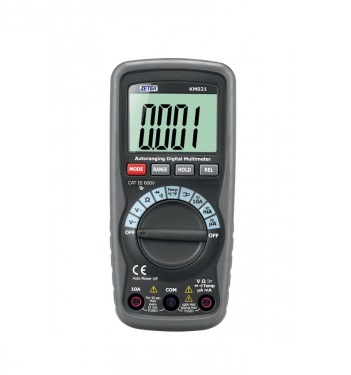

Zetek KM021 Autoranging Multimeter
Measurements: Voltage (AC/DC) up to 250V and Current (AC/DC) up to 10A.




Measurements:

  • Voltage (AC/DC) up to 250V
  • Current (AC/DC) up to 10A.
  • Protected by internal fuse.
  • Resistance
  • Diode test
  • Continuity test with audible signal
  • Temperature (-50°C/+1000°C) with thermocouple
  • Autoranging, automatic selection of the measuring scale
  • Data hold, value block on the display
  • Auto power-off after 15 minutes

TECHNICAL DATA

 DC voltage  200mV, 2V, 20V, 200V, 600V, 1000V
 AC voltage  200mV, 2V, 20V, 200V, 600V, 1000V
 DC current  200µA, 2mA, 20mA, 200mA,10A
 AC current  200µA, 2mA, 20mA, 200mA,10A
 Resistance  200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
 Continuity  R<100Ω
 Diode test Yes
 Temperature  -50° / +1000 °C
 Data hold Yes
 Auto power off   15 min
 Power supply 1x9V battery not included
